Elastic Compression Calculator
Based on Case 11: Sphere in Contact with External Cylinder

Elastic Compression Calculator is a web-based tool for calculating the elastic compression of spheres and cylinders at point and line contact.

Elastic Compression of Spheres and Cylinders
at Point and Line Contact
Jack A. Stone and Jay H. Zimmerman

Elastic Compression Conditions
Based on Case 11: Sphere in Contact with External Cylinder

Input Amount

Applied Force:

Diameter of Ball:

Diameter of Cylinder:

Material of Ball*:

Young's Modulus*:

Poisson's Ratio*:

Material of Cylinder*:

Young's Modulus*:

Poisson's Ratio*:

* All calculations use accepted values for Young's Modulus and Poisson's Ratio unless you select Other for Material and enter new values for Young's Modulus and Poisson's Ratio.

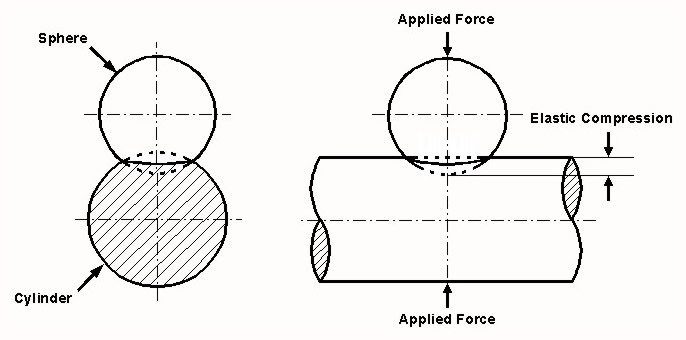

Diagram for Case 11: Sphere in Contact with External Cylinder
