 Elastic Compression Calculator
 Based on Case 5: Equal Diameter Cylinders Crossed with Axes at Right Angles

Elastic Compression Calculator is a web-based tool for calculating the elastic compression of spheres and cylinders at point and line contact.

Elastic Compression of Spheres and Cylinders
at Point and Line Contact

Jack A. Stone and Jay H. Zimmerman

Elastic Compression Conditions
Based on Case 5: Equal Diameter Cylinders Crossed with Axes at Right Angles

InputAmount
Applied Force:
Diameter of Cylinders:
Material of First Cylinder*:
     Young's Modulus*:
     Poisson's Ratio*:
Material of Second Cylinder*:
     Young's Modulus*:
     Poisson's Ratio*:
*All calculations use accepted values for Young's Modulus and Poisson's Ratio unless you select Other for Material and enter new values for Young's Modulus and Poisson's Ratio.

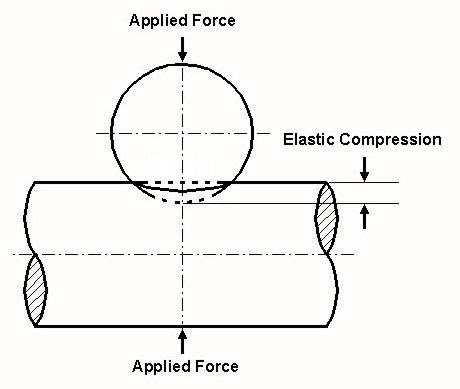

Diagram for Case 5: Equal Diameter Cylinders Crossed with Axes at Right Angles
